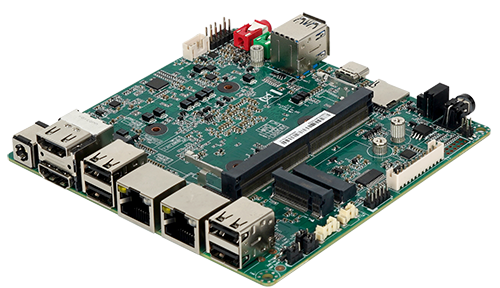

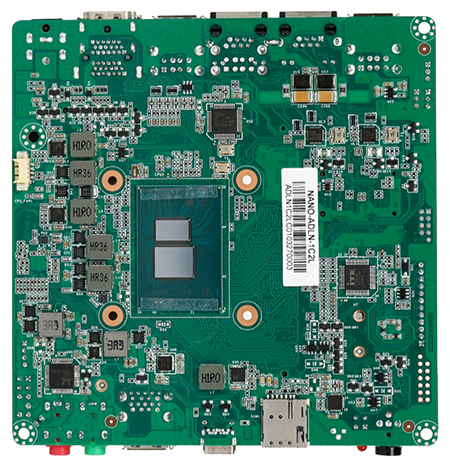

NANO-ADLN-1C2L
Detailed
Support Intel®Alder Lake-N (N305/N100, etc) Processor
Support single channel SO-DIMM, DDR5 4800MHz, Max16GB
Support 2*HDMI+VGA display output, triple display (synchrony/asynchrony)
Onboard 2*RTL8111H Gigabit LAN card
Support 2*USB3.2 Gen2 (10Gbps), 1*Type-C, 4*USB2.0;
Support 1*MicroSD card slot, 1*SIM card slot; 1*COM RS232;
1*M.2 M Key, support SATA/NVME adaptive;
1*M.2 E Key, support Wifi/Bluetooth module expansion;
1*M.2 B Key, support 5G module expansion;
DC12V power supply

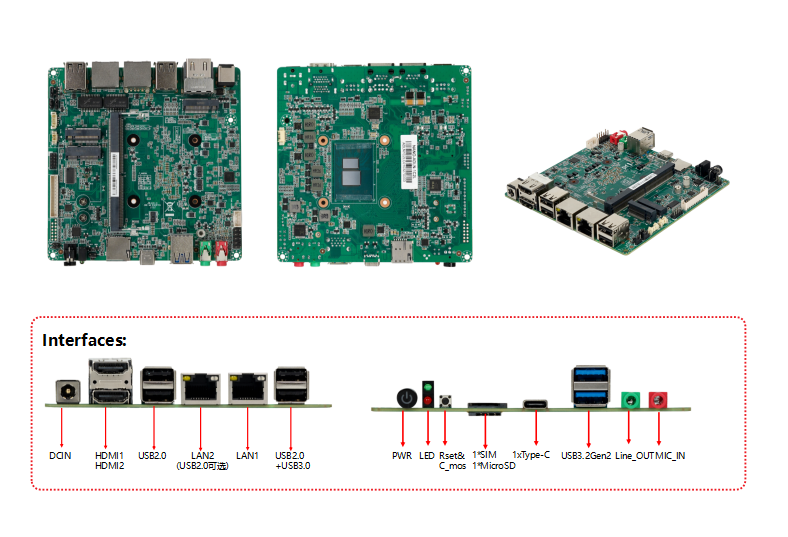

CPU Intel®Alder Lake-N (N305/N100, etc) Processor Rear I/O 1*DC_IN
Chipset Intel® SOC 2*HDMI
GPU Intel® Ultra Core Graphics 2*USB2.0
Display Output 2*HDMI+VGA(optional) 1*LAN2 (Optional 2*USB2.0)
Multi Display Triple display (synchrony/asynchrony) 1*LAN1
USB 2*USB3.2 Gen2 (10Gbps); 4*USB2.0 2*USB2.0
Memory 1*SO-DIMM DDR5 4800MHz Max16GB Front I/O 1*PWRBTN
Audio Onboard ALC897 audio decoding controller; 2*LED 1 x Hard Disk Indicator (Red)+1 x Power Light (Green)
Independent amplifier NS4251  3W@4Ω MAX 1*Rset&CLR_CMOS
Network Onboard 2*Realtek RTL8111H Gigabit LAN card 1*SIM
Storage 1*M.2 M Key, support SATA/NVME adaptive 1*MicroSD
Expansion Slot 1*M.2 E Key, support Wifi6/Bluetooth module expansion； 1*Type-C
1*M.2 B Key,  support 5G module expansion 2*USB3.2 Gen2(10Gbps)
I/O Chip IT8613E 1*Line-OUT； 1*MIC-IN
BIOS AMI  BIOS Internal I/O 1*F_AUDIO Pin
Power DC 12V power supply 1*Speaker Pin
Cooling Separate radiator required 1*COM Pin
Environment Operating:0~60℃; Storage: -20~75℃ 1*VGA Pin
0%~95% Relative Humidity,Non-condensing 1*JLED Pin
Size 120X120mm 1*TPM Pin   1*Fpanel Pin
