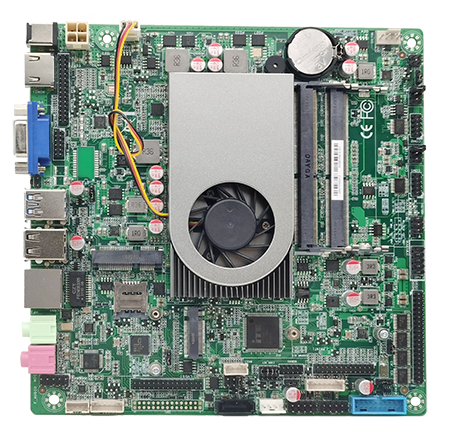

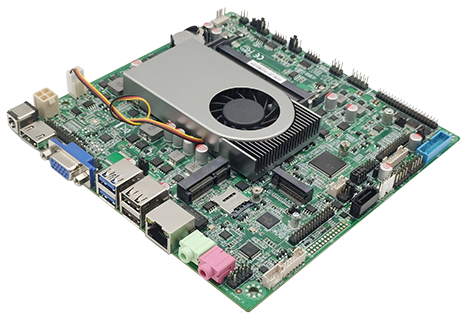

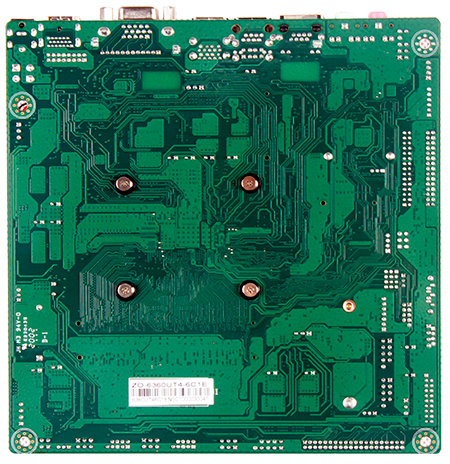

ZO-SKYUTA-6CD8
Detailed
Support for Intel ® Kaby Lake&Sky Lake Processor
Supports dual channel SO-DIMM, DDR4 2133MHz, Max32GB
Supports LVDS/EDP1+EDP2/HDMI+VGA display, three displays simultaneously and asynchronously
On board 2 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional with single network)
Supports 4 * USB3.2 Gen1 (5Gbps), 4 * USB2.0
1 * M.2 M Key (PCIEX4/SATA signal adaptation); 1 * SATA3.0
1 * mPCIE, supporting WiFi/Bluetooth/4G module expansion; 1 * SIM
DC 12V power supply

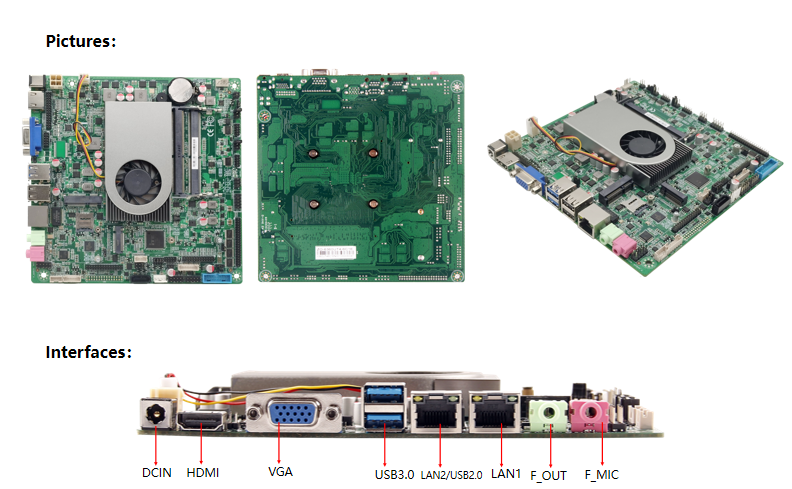

CPU Intel® Kaby Lake & Sky Lake  Processor Post I/O interface 1 * DC_ IN port
1 * HDMI port
1 * VGA port
1 * CLR_ CMOS buttons
2 * USB3.2 Gen1 (5Gbps) port
1 * LAN2 port (optional with 2 * USB2.0)
1 * LAN1 port
1 * HP_ OUT port
1 * MIC_ IN port
Chipset Intel® SOC
Display chip Intel ®  Core graphics card
Display output LVDS/EDP1+EDP2/HDMI+VGA
Multi display support Three display synchronous asynchronous
USB 4*USB3.2 Gen1（5Gbps） ，4*USB2.0
Memory 2*SO-DIMM DDR4 2133MHz Max32GB
sound effects On board HS-100B audio decoding controller Internal I/O 1 * F_ AUDIO pin
1*Speker pin
1 * INVERT pin
2 * EDP pin
1 * LVDS pin
1 * BKCL pin
1 * SATA pin
1 * SATA_ PWR pin
2 * F_ USB2.0 pin (expandable 4 * USB2.0)
1 * F_ USB3.0 pin (expandable 2 * USB3.0)
1 * JPS2 pin
1 * J_ PRINT pin
6 * COM pin
1 * F_ PANEL pin
1 * AXT_ IN socket
1 * SYS_ FAN socket
1 * CPU_ FAN socket
1 * JVGA pin
Independent power amplifier NS4251（ 3W@4 Ω MAX)
Network card On board 2 * Realtek RTL8111H/8111G Gigabit Ethernet card (optional single network)
storage 1*M.2 M Key ;1*SATA3.0
expansion slot 1 * mPCIE, supporting WiFi/Bluetooth/4G module expansion;
I/O chip IT8786E-I
BIOS AMI  BIOS
power supply DC / 4Pin ATX  12V  power supply
Cooling System  Equipped with fan and radiator
Environment Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
0%~95% relative humidity, non condensing
Size 170X170mm

Model CPU DIMM Expansion Storage Display ports Cooling Power Size (mm)
USB2.0 USB3.0 COM232 RS LAN LPT SPEAKE MINI-PCIE SIM M.2 SATA VGA LVDS EDP HDMI DC
485 KEYB/M
ZO-6360UTA-6C1E2L I5-6360U 2 4 4 6 1 2*100M √ √ √ √ √ 1 1 / 2* 1 With FAN 12V ITX
ZO-6200UTA-6C1E2L I5-6200U 2 4 4 6 1 2*100M √ √ √ √ √ 1 1 / 2* 1 With FAN 12V ITX
ZO-6360UTA-6C1E I5-6360U 2 6 4 6 1 1*100M √ √ √ √ √ 1 1 / 2* 1 With FAN 12V ITX
ZO-7167UTA-6C1E I3-7167U 2 6 4 6 1 1*100M √ √ √ √ √ 1 1 / 2* 1 With FAN 12V ITX
ZO-6360UTA-6C1L I5-6360U 2 6 4 6 1 1*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX
ZO-6157UTA-6C1L I3-6157U 2 6 4 6 1 1*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX
ZO-6567UTA-6C1L I7-6567U 2 6 4 6 1 1*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX
ZO-7167UTA-6C1L I3-7167U 2 6 4 6 1 1*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX
ZO-6006UTA-6C1L I3-6006U 2 6 4 6 1 1*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX
ZO-6200UTA-6C1L I5-6200U 2 6 4 6 1 1*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX
ZO-6300UTA-6C1L I5-6300U 2 6 4 6 1 1*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX
ZO-6157UTA-6C2L I3-6157U 2 4 4 6 1 2*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX
ZO-6567UTA-6C2L I7-6567U 2 4 4 6 1 2*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX
ZO-6300UTA-6C2L I5-6300U 2 4 4 6 1 2*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX
ZO-6360UTA-6C2L I5-6360U 2 4 4 6 1 2*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX
ZO-7167UTA-6C2L I3-7167U 2 4 4 6 1 2*100M √ √ √ √ √ 1 1 1 1* 1 With FAN 12V ITX

1*and 2* note：：1*E

DP2 PIN（Choose one of HDMI or EDP2 and use HDMI by default. EDP2 this pin has no function by default, if you need to use it, we need to update the bios firmware)
