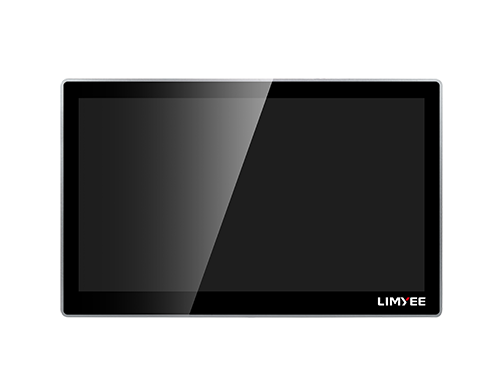

PPC-1011
Detailed
Support for Baytrail processors J1900/J1800/N2807
Supports DDR3L standard configuration of 4GB and M-SATA standard configuration of 128G
Standard 10.1-inch high-definition display screen, capacitive touch screen, supporting three displays
Standard configuration: 4USB, 1LAN interface, 2COM, expandable GPIO
Supports 1 * MINI-PCIE (for WIFI), 1 * SIM

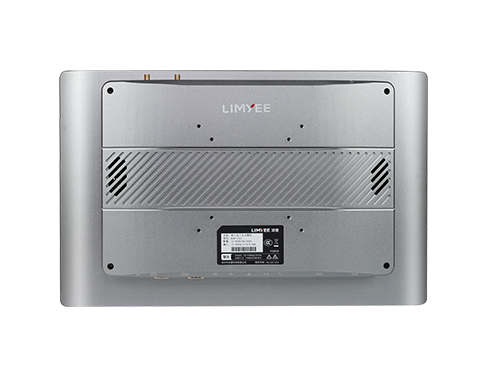

Supports VESA bracket installation, wall mounted and desktop mounted
The complete machine has a windless design, patented industrial design, and is aesthetically pleasing
The product can be widely used in industries such as MES, store displays, and self-service terminals
Panel protection level: IP65 waterproof and dustproof
ESD Protection: ±6kV (Contact ), ± 12kV (Air)
The product can be widely used in industries such as MES, store displays, self-service terminals, etc

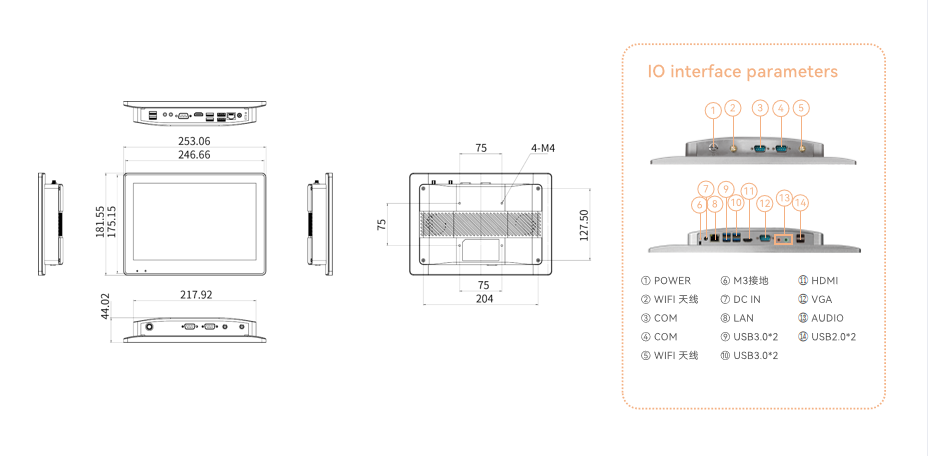

Product Model  Industrial Panel PC PPC-1011 Pilot lamp Reserved power status indicator light under the screen Dimensions  253x182x44mm
Display 10.1 Trumpet 2 x 4 ? 3W Weight < 1.8kg
Touch Screen  Capacitive Touch Screen Heat dissipation Fanless Product  colour Space Gray
Resolution Ratio  1280*800 Overall Power Consumption <17W (screen 3.5W) Chassis material Aluminum alloy structure
Luminance  300cd/㎡ Installation Method Compatible with embedded, wall mounted, and desktop versions
CPU Bay Trail Gemini Lake
BIOS AMI  BIOS AMI  BIOS
Chipset  Intel® SOC Intel® SOC
Display  Intel ®  HD Graphics nuclear display Intel® UHD Graphics 600
Network  Realtek RLT 8111H/8111G Gigabit Network Card Realtek RLT 8111H/8111G Gigabit Network Card
Audio ALC897 HD Audio Decoding Controller ALC897 Audio Decoding Controller
Memory  DDR3L 1333MHz Max 8G DDR4 2933MHz Max32GB
Hard dive  1*Sata，1*Mini-Sata 1*Mini-Sata
Functions  Support 1 * Mini PCIE (support Wifi/4G module), power on auto start, watchdog, wake-on-LAN 1 * mPCIE, supporting WIFI/Bluetooth module expansion

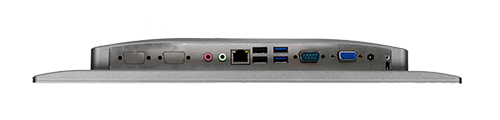

Front I/O 1 * Switch; 2 * Antenna;  2*COM 1 * Switch;  2 * Antenna ;  2*COM

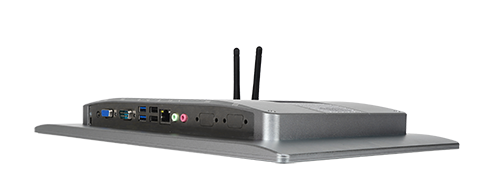

Rear I/O  1 * DC IN port
1 * LAN port
4 * USB3.0 port
1 * SIM card slot
1 * VGA port
1 * LINE OUT port
1 * MIC-IN port
2*USB2.0
1 * M3 grounding screw hole		 1 * DC IN port
1 * LAN port
4 * USB3.0 port
1 * HDMI port
1*COM
1 * LINE OUT port
1 * MIC-IN port
2*USB2.0
1 * M3 grounding screw hole
Power IN DC 12V input DC 12V input
OS support  Windows 7 / Windows 10 / Linux Windows 7 / Windows 10 / Linux
Power consumption  ≤60W
Power Adapter INPUT : 100-240V  50/60Hz  ;   Output : 12.0V/5.0A INPUT : 100-240V  50/60Hz ;  Output : 12.0V/5.0A
certification CCC / CE /FCC/ RoHs CCC / CE /FCC/ RoHs
  National standard Parameter Description
EMC GB/T 9254.1-2021
Radio disturbance limits and measurement methods for information technology equipment

Radiation disturbance (B) level

Conducted disturbance (B) level
GB/T 17618-2015                                                            Information technology equipment immunity limits and measurement methods Meet the requirements of 6KV contact discharge and 12KV air discharge
Safety GB 4943.1-2011
Information technology equipment security - Part 1: General requirements		 Grounding resistance: ≤ 0.1 Ω
Dielectric strength: Under a limited leakage current of 10mA, for Class I equipment, the withstand voltage of the primary circuit to the casing is ≥ 1.5KV AC or 2.2KV DC; For Class II equipment, the withstand voltage of the primary circuit to the casing is ≥ 3.0KV AC or 4.3KV DC
Insulation resistance: ≥ 100M Ω
Leakage current: ground leakage current ≤ 3.5mA
Environment GB/T 9813.4-2017
General specification for computers - Part 4: Industrial application microcomputers
GB/T 2423
Environmental Test

Working temperature: 0 ℃~50 ℃
Storage temperature: -20 ℃~70 ℃

Damp heat: 40 ℃ 95% RH
Panel protection level: IP65
Drop in packaging: The machine is packaged at a of 1 meter, with 8 edges and 6 sides dropping once each
Vibration: 5-5.5Hz, displacement 25.4mm; 5.5~200Hz/acceleration 1.0g, working direction; Test duration1 cycle
Impact: Half sine pulse, peak acceleration of 10g, pulse of 11ms, and 3 times of impact in the working direction Noise: (0) dB

Product Type

Specifications Description

Remarks

PPC-1011

10.1-inch LCD screen/capacitive touch screen /J1900/DDR3L  1333MHz  4GB/M-SATA 128GB



PPC-1011

10.1-inch LCD screen/capacitive touch screen/J4125 /DDR4 2133/2400MHz  4GB/M.2 2280 Sata 128GB
